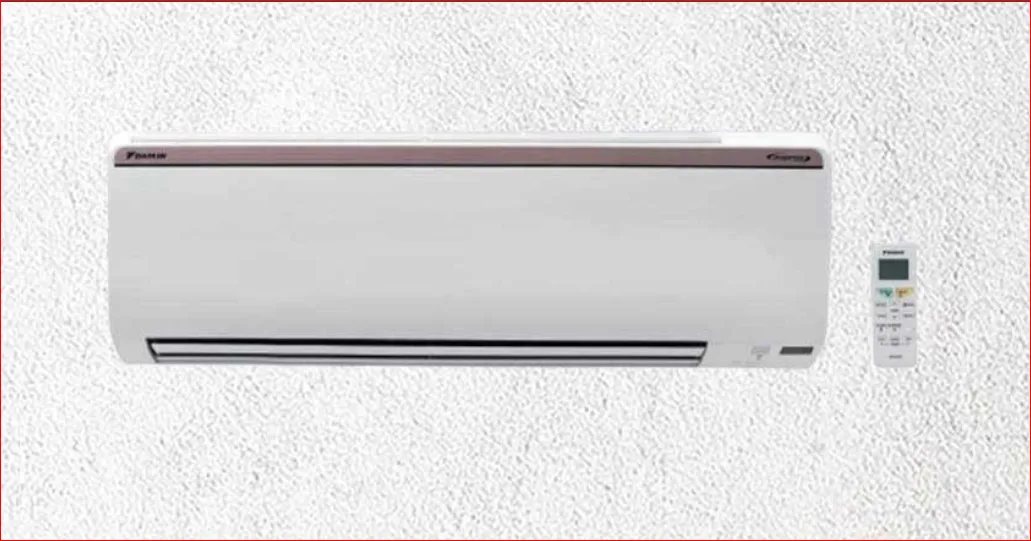

Model Number : FTXF50UV16
- Capacity :1.5 Ton
- ISEER Rank / ISEER :Inverter 5 Star / 5.2
- Cooling Capacity (Btu/h) :17,100 / 8,550 (5,120 ~ 19,619)
- Power consumption (Cool) (W) :1,270 / 431 (310 ~ 1,620)
- Heating Capacity (Btu/h) :18,770 (4,400 ~ 22,520)
- Power consumption (Heating) (W) :1,300 (260 ~ 1,800)
- Annual Power consumption (kWh) :743.95
Key Features -Daikin FTXF50UV16V 1.5 Ton Inverter 5 Star Hot & Cold Split Air Conditioner
- Daikin Patented SwingCompressor
- DNNS SELF HEAL COATING- has self healing properties that compensates and covers the cracks
- Hepta Sensa(7 Sensors located on IDU and ODU)
- Neodymium magnetis10 timesstronge than normal ferrite magnet - lower noise, better comfort and longer motor life
- Backlit Remotewith Brightness Control - can be control as per convenience of the user
- Dew Clean Technology :It auto cleans the coils of indoor unit heat exchanger
- Swing- Twin Roatory Compressor
- Air Throw*16 Meters,4 WaySwing ,PM 2.5Filter
- Triple Display :IDU Display shows%age Power consumption, Temperature(Set & Room)andError code
- Anti-corrosiontreatment onIndoor and Outdoorheat exchanger tubes(BTA Oil)
- CoolingCapacity@ 43C:100%
- IndoorUnit quiet operation
- 3 StageAir filtration
- AutoVariable Speed
- 5 YearsWarranty onPCB,10 YearsWarranty onCompressor
- Voltage Range(Stabilizer Inside) :(130 - 285 V)
Technical/Functional Specification
| Series | FTXF Series | |
| Indoor Model No | FTXF50UV16V | |
| Outdoor Model No | RXF50UV16V | |
| Power supply intake | Outdoor unit | |
| Cooling Capacity Rated Full/Half (min~max) | kW | 5.0 / 2.5 (1.5 ~ 5.75) |
| Cooling Capacity Rated Full/Half (min~max) | Btu/h | 17,100 / 8,550 (5,120 ~ 19,619) |
| Heating Capacity Rated Full/Half (min~max) | kW | 5.5 (1.3 ~ 6.6) |
| Heating Capacity Rated Full/Half (min~max) | Btu/h | 18,770 (4,400 ~ 22,520) |
| Power consumption (Cooling) Rated Full/Half (min~max) | W | 1,270 / 431 (310 ~ 1,620) |
| Power consumption (Heating) Rated Full/Half (min~max) | W | 1,300 (260 ~ 1,800) |
| Annual Power Consumption | kWh | 743.95 |
| ISEER / ISEER Rank | 5.2 / Inverter - 5 Star | |
| Voltage Range | V | 130 - 285 |
| Power Supply | Ph, V, Hz | 1 , 230, 50 |
| Operating Current - Cooling | A | 5.63 |
| Operating Current - Heating | (A) | 5.77 |
| Filters | PM 2.5 Filter | |
| Self Diagnosis | Yes | |
| Sleep Mode | Yes | |
| Timer | Yes | |
| Auto Restart | Yes | |
| Other Convenience Features | Power airflow dual flaps ; 3D Air flow ; Wide-Angle Louvers ; Vertical auto-swing (up & down) ; New Coanda Airflow ; Power Chill Operation ; Econo Mode ; Smell proof operation ; Auto-Restart after Power Failure, Dew Clean |
Indoor Unit
| Front Panel Colour | White | |
| Dimensions | (H x W x D) | 298 x 885 x 229 |
| Machine Weight | (Kg) | 11 |
| Airflow rate - Cooling | Feet/min (Cfm) | 526 |
| Airflow rate - Cooling | m/min (Cfm) | 14.9 |
| Airflow rate - Heating | Feet/min (Cfm) | 572 |
| Airflow rate - Heating | m/min (Cfm) | 16.2 |
| Moisture Removal | Liters/Hour | 1.6 |
| Sound Levels (H / MH / M / ML / L / SL) | 47 / 43 / 41 / 38 / 36 / 32 |
Outdoor Unit
| Casing Colour | Ivory White | |
| Compressor Type | Swing Compressor | |
| Dimensions (H x W x D) | mm | 595 x 845 x 300 |
| Machine Weight | (Kg) | 33 |
| Breaker size | (A) | 20 |
| Piping Length - Charge-less | (m) | 10 |
| Piping Length - Max. length | (m) | 30 |
| Piping Length - Max. height | (m) | 16 |
| Piping Connection (Gas/Liquid) | mm (inch) | 12.7/6.4 (1/2" ; 1/4") |
| Operating Ambient Temperature Range Cooling (Min ~ Max) | CDB | -10 ~ 54 |
| Operating Ambient Temperature Range Heating (Min ~ Max) | CDB | -15 ~ 24 |
Made in india
